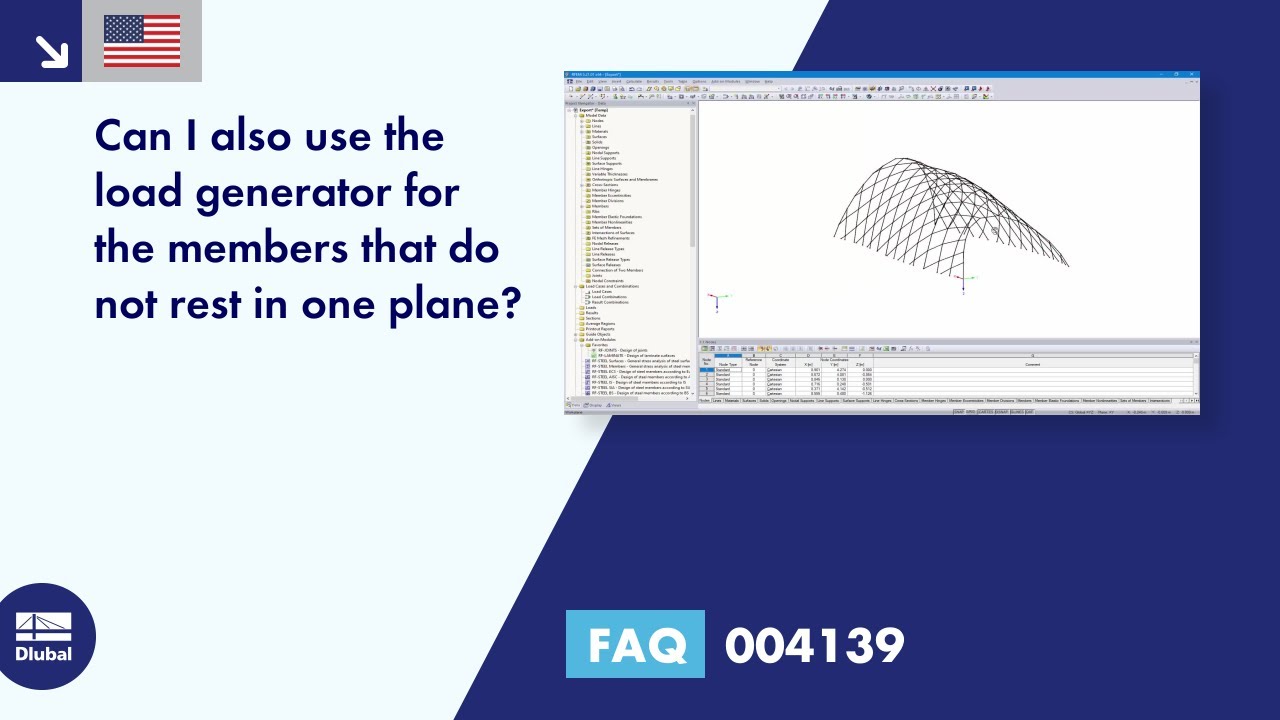

Question: Can I also use the load generator for members that do not lie in one plane?
Answer:
For irregular member structures, the load generators "From Area Load on Members via Plane" or with "Cells" can be helpful. However, both functions assume that the nodes of the members lie in one plane. In the settings of the load generators, you can increase tolerances for the nodes to also detect nodes that lie outside the plane (see Figure 01). In interaction with the "fictitious lines", it is possible to load even more complex structures.
For more information, go to the FAQ page:
